Wire:4mm
Mesh:76.2*12.7mm,(3"*0.5")
Height: 2.5-5m
Width:2-3m
Surface Treatmeng：Hot dipped galvanized and pvc powder coated
Production description:

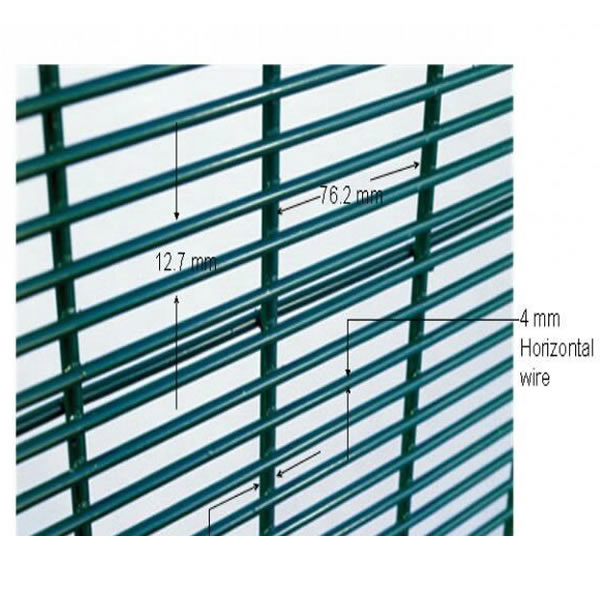

The mesh size of horizontal wire 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm, it is very popular in US Market and Europen market and Malaysia Market. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.
Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.
Beautiful appearance - the mesh surface is flat, two-dimensional three-dimensional, and the perspective is higher.
Horizontal wire 358 Security Fence Uses: Fence, decoration, protection and other facilities in industries such as industry, agriculture, municipalities, transportation, etc. It also used in road green belt protection nets.

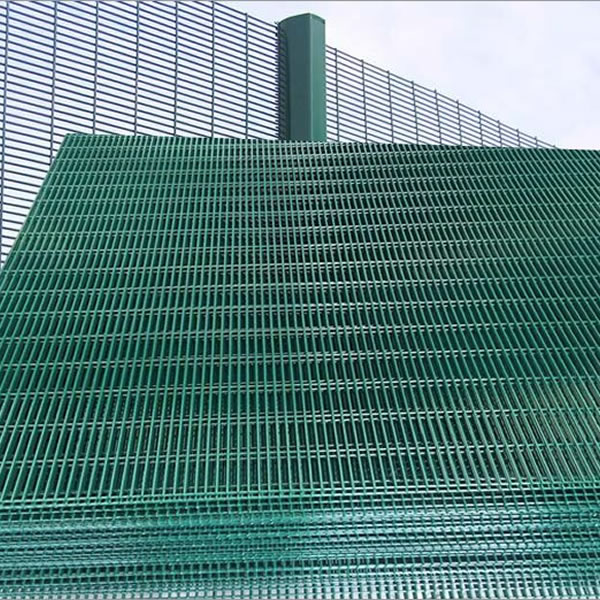

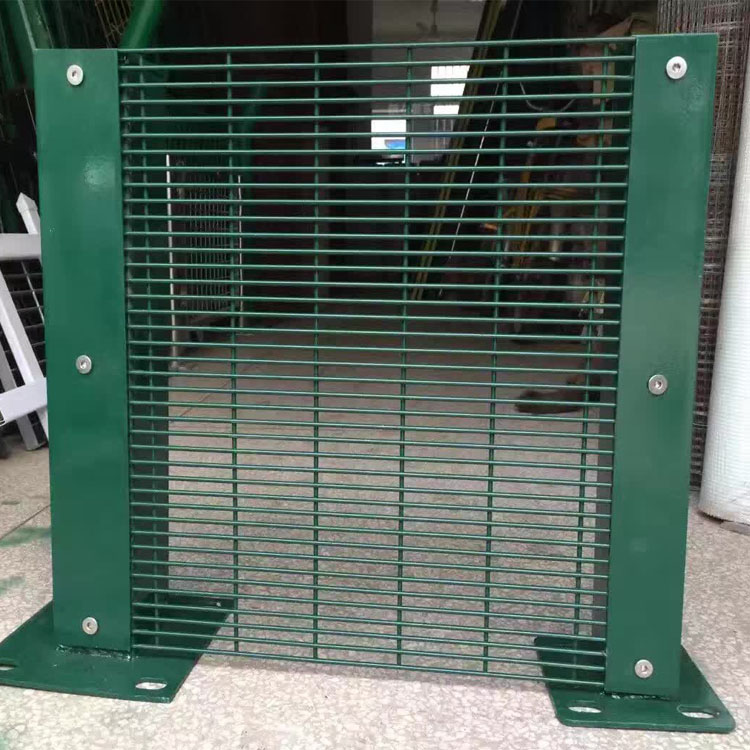

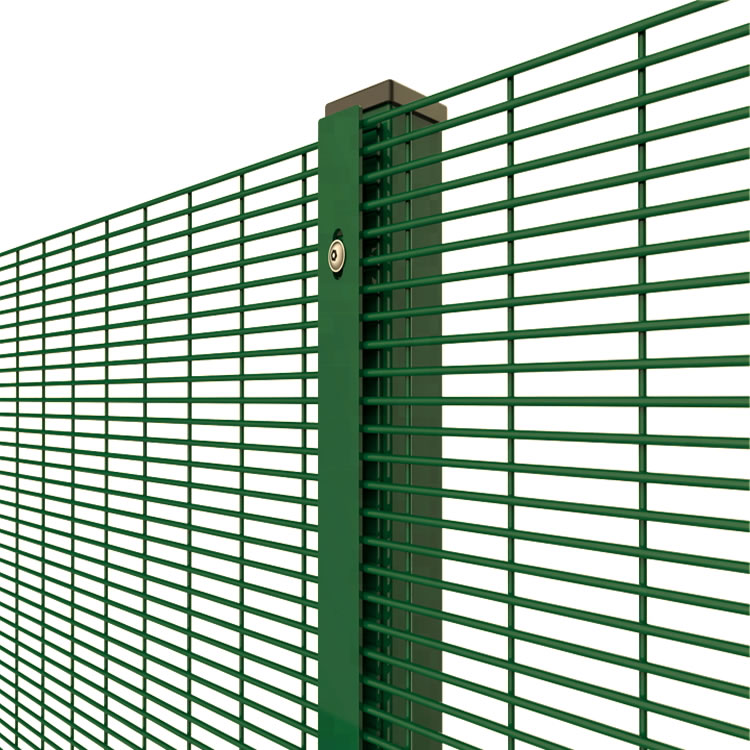

358 Anti-Climb Fencing
Specifications:
| Horizontal Wire 358 Security Fence | |||||
| Mesh Opening | Wire Diameter | Height of Fence | Width of Fence | Post Type | |
| 12.7 x 76.2mm (0.5" x 3") | 3/3.5/4mm | 1.2-2.5m | 2.0-3.1m | Square Post(SHS) 60 x 60 x 2.0/2.5/3.0mm 80 x 80 x 2.0/2.5/3.0mm | Rectangular Post(RHS) 40 x 60 x 2.0/2.5/3.0mm 40 x 80 x 2.0/2.5/3.0mm 60 x 80 x 2.0/2.5/3.0mm 80 x 100 x 2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | |||||
| Color: RAL 6005 green, RAL 7016 gray, All RAL color can be customized. | |||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | |||||

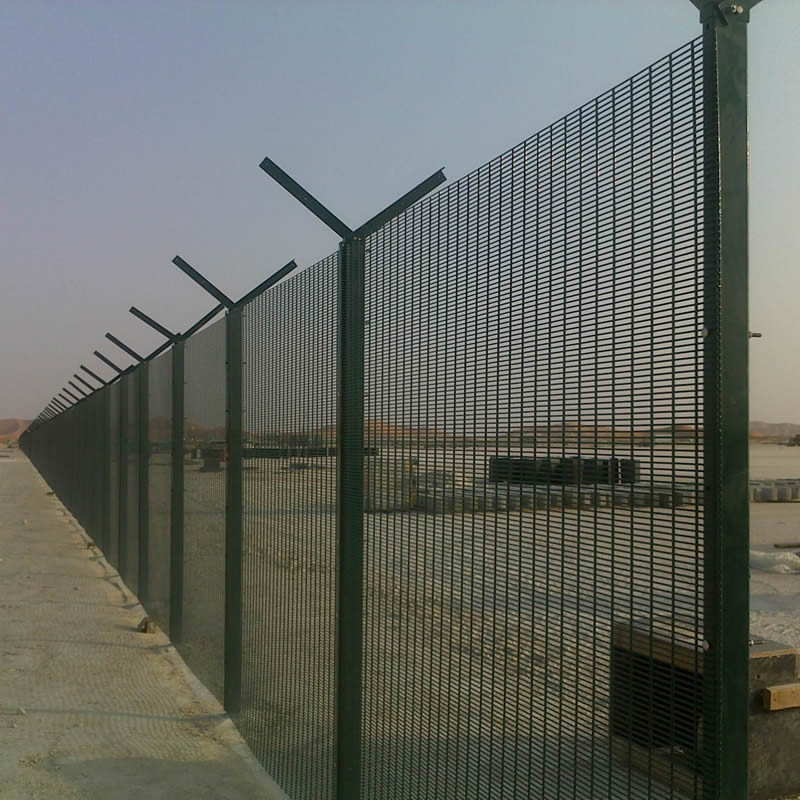

Top make: Y arm and add razor wire .connect with barbed wire.
Normal with Gate: Sliding gate and swimming gate.
Technology:
Panel wire:Q195&Q235 Low carbon wire

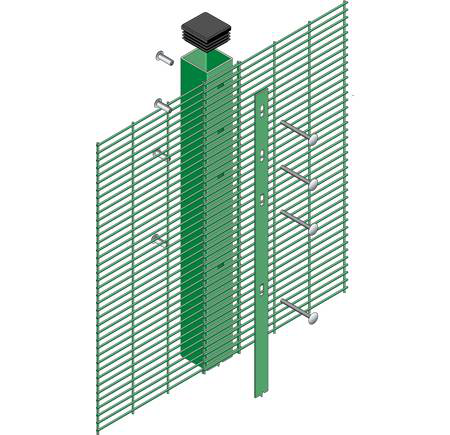

Post: hot dipped galvanized tube, no coated tube
Bolts:M8 anti-vandal steel or stainless steel
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Color:Green, black, yellow, white,blue, etc.
Processing of welded wire mesh fence:
Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging

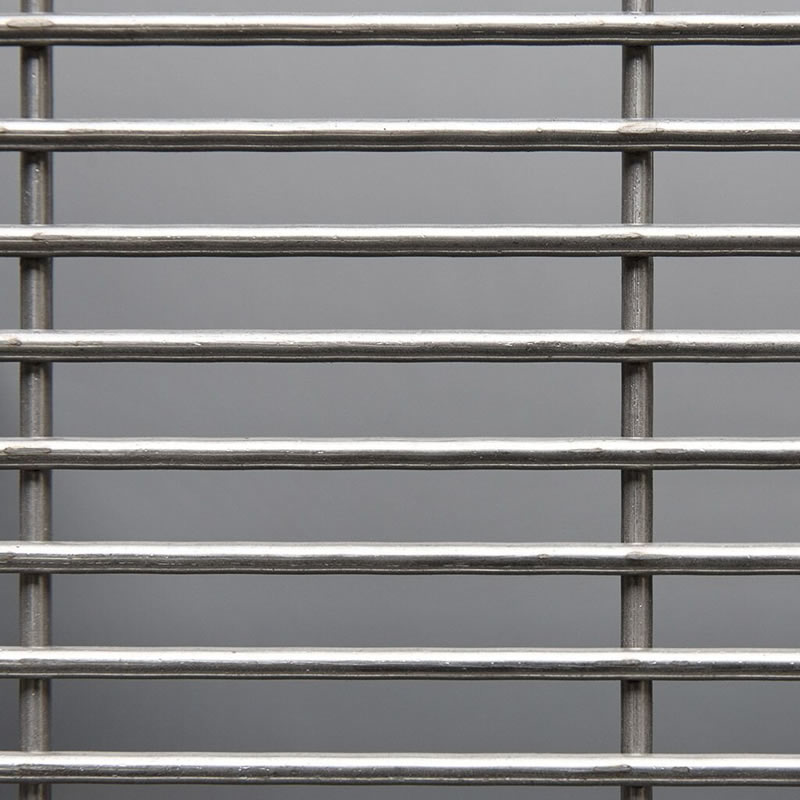

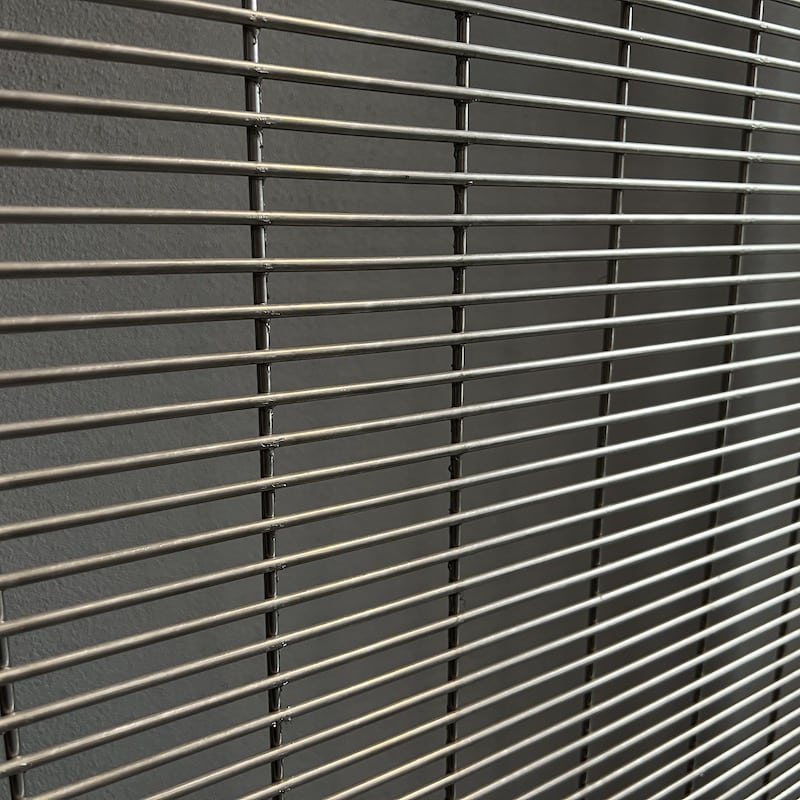

Stainless Steel 358 Anti Climb mesh is available in a variety of mesh apertures, 358 stainless steel sheets are available in full size 2400 x 2400 in stock and ready for dispatch, manufactured using high quality material.

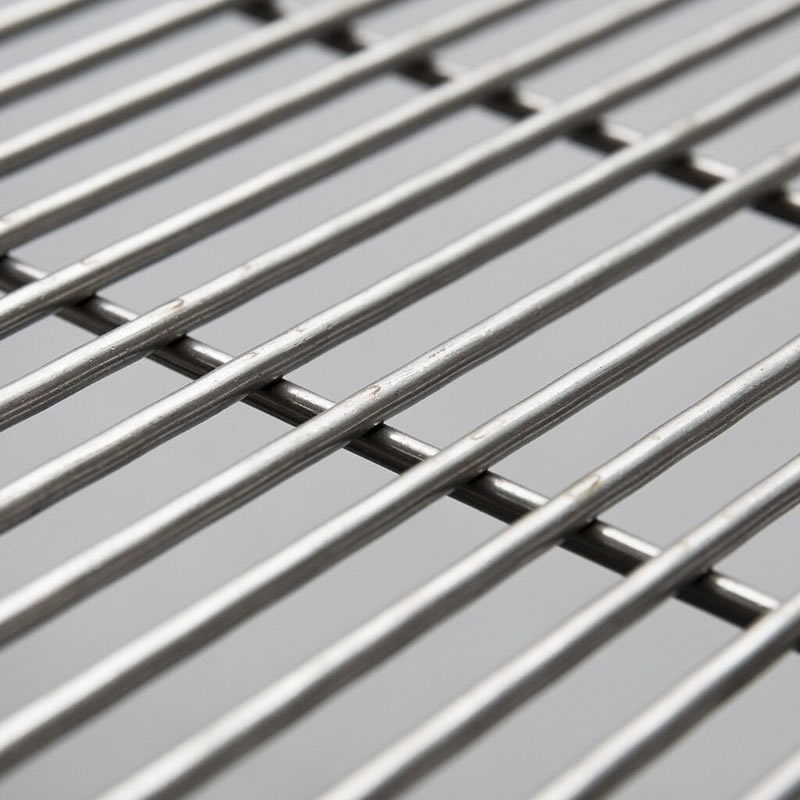

358 mesh known as anti climb mesh is welded stainless steel wire mesh sheets, commonly utilised in high security applications for preventing unauthorised access and allowing high visibility, the rectangular spacing of the horizontal and vertical wires make it unclimbable.
358 mesh is commonly used for bridges as anti climb fencing and machine guards. The stainless steel mesh panel is grade 316 stainless steel making it ideal for highly recommended for use in corrosive environments.
Our Stainless steel wire mesh sheets are commonly used in, construction, fabrication, safety, storage.
If your project requires a specific custom stainless steel wire mesh product, please see “Custom Fabricated Mesh” we have the capabilities for manufacture a wide variety of shapes and sizes.
Spec info:
75x13mm mesh
4.0mm wire
316 stainless steel
1200x2400mm sheet size
26kg per sheet
Other sizes are able to be manufactured on request.
